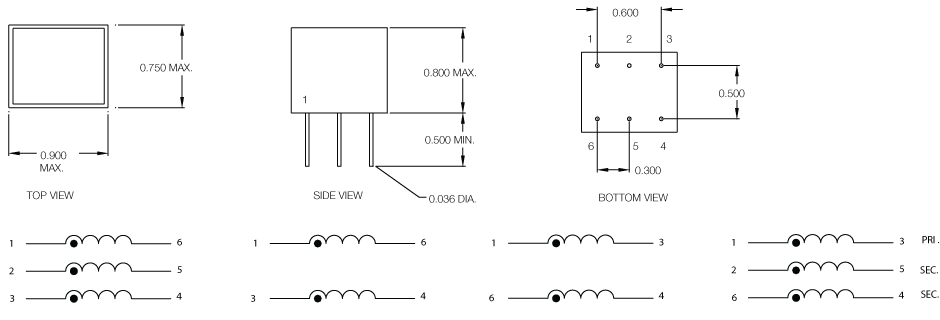

ELECTRICAL CHARACTERISTICS @ 25˚C
| BH PART NUMBER | TURNS RATIO | PRIMARY INDUCTANCE (mH-MIN.) | PRIMARY ET-CONSTANT | LEAKAGE INDUCTANCE (μH) | Ciw (pf MAX.) | DCR PRI (Ω) | DCR SEC (Ω) | DCR SEC (Ω) | SCHEMATIC |
|---|---|---|---|---|---|---|---|---|---|
| L05-5500 | 1:1 | 0.25 | 45 | 5 | 20 | 1 | 1 | N/A | 2 |
| 505-5501 | 1:1 | 1 | 90 | 20 | 30 | 2 | 2 | N/A | 2 |
| 505-5502 | 1:1 | 5 | 180 | 45 | 30 | 3 | 3 | N/A | 2 |
| 505-5503 | 1:1 | 20 | 360 | 200 | 50 | 5 | 5 | N/A | 2 |
| 505-5504 | 1:1:1 | 0.25 | 45 | 5 | 20 | 1 | 1 | 1 | 1 |
| 505-5505 | 1:1:1 | 1 | 90 | 20 | 30 | 2 | 2 | 2 | 1 |
| 505-5506 | 1:1:1 | 5 | 180 | 45 | 30 | 3 | 3 | 3 | 1 |
| 505-5507 | 1:1:1 | 20 | 360 | 200 | 50 | 5 | 5 | 5 | 1 |
| 505-5508 | 2:1 | 1 | 90 | 40 | 30 | 2 | 1 | N/A | 2 |
| 505-5509 | 2:1 | 5 | 180 | 60 | 30 | 3 | 2 | N/A | 2 |
| 505-5510 | 2:1:1 | 1 | 90 | 40 | 30 | 2 | 1 | 1 | 1 |
| L05-5511 | 2:1:1 | 5 | 180 | 60 | 30 | 3 | 2 | 2 | 1 |
| 505-5512 | 5:1 | 20 | 360 | 200 | 50 | 5 | 2 | N/A | 2 |
| 505-5513 | 5:1:1 | 20 | 360 | 200 | 50 | 5 | 2 | 2 | 1 |
| 505-5570 | 1:1 | 0.25 | 45 | 5 | 20 | 1 | 1 | N/A | 3 |
| 505-5571 | 1:1:1 | 0.25 | 45 | 5 | 20 | 1 | 1 | 1 | 4 |
| 505-5572 | 1:1 | 1 | 90 | 20 | 30 | 2 | 2 | N/A | 3 |
| 505-5573 | 1:1:1 | 1 | 90 | 20 | 30 | 2 | 2 | 2 | 4 |
| 505-5574 | 1:1 | 5 | 180 | 45 | 30 | 3 | 3 | N/A | 3 |
| 505-5575 | 1:1:1 | 5 | 180 | 45 | 30 | 3 | 3 | 3 | 4 |
| 505-5576 | 1:1 | 20 | 360 | 200 | 50 | 6 | 6 | N/A | 3 |
| 505-5577 | 1:1:1 | 20 | 360 | 75 | 50 | 3 | 3 | 3 | 4 |
| 505-5578 | 2:1 | 1 | 90 | 40 | 30 | 2 | 1 | N/A | 3 |
| 505-5579 | 2:1:1 | 1 | 90 | 60 | 30 | 2 | 1 | 1 | 4 |
| 505-5580 | 2:1 | 5 | 180 | 40 | 30 | 3 | 2 | N/A | 3 |
| 505-5581 | 2:1:1 | 5 | 180 | 45 | 30 | 3 | 2 | 2 | 4 |
| 505-5582 | 2:1 | 20 | 360 | 200 | 75 | 5 | 3 | N/A | 3 |
| 505-5583 | 2:1:1 | 20 | 360 | 200 | 75 | 3 | 2 | 2 | 4 |
| 505-5584 | 5:1 | 20 | 360 | 200 | 50 | 5 | 2 | N/A | 3 |
| L05-5585 | 5:1:1 | 20 | 360 | 200 | 50 | 5 | 2 | 2 | 4 |
| L05-5600 | 1:1 | 6.2 | 40 | 1.39 | 21 | 1.375 | 1.475 | N/A | See Print |
Note: Part numbers beginning with “L” are RoHS compliant. All others could be made RoHS compliant. Contact BH Electronics.
